2010-10-15 - Camera Mount for Night Sky Photography

Original image

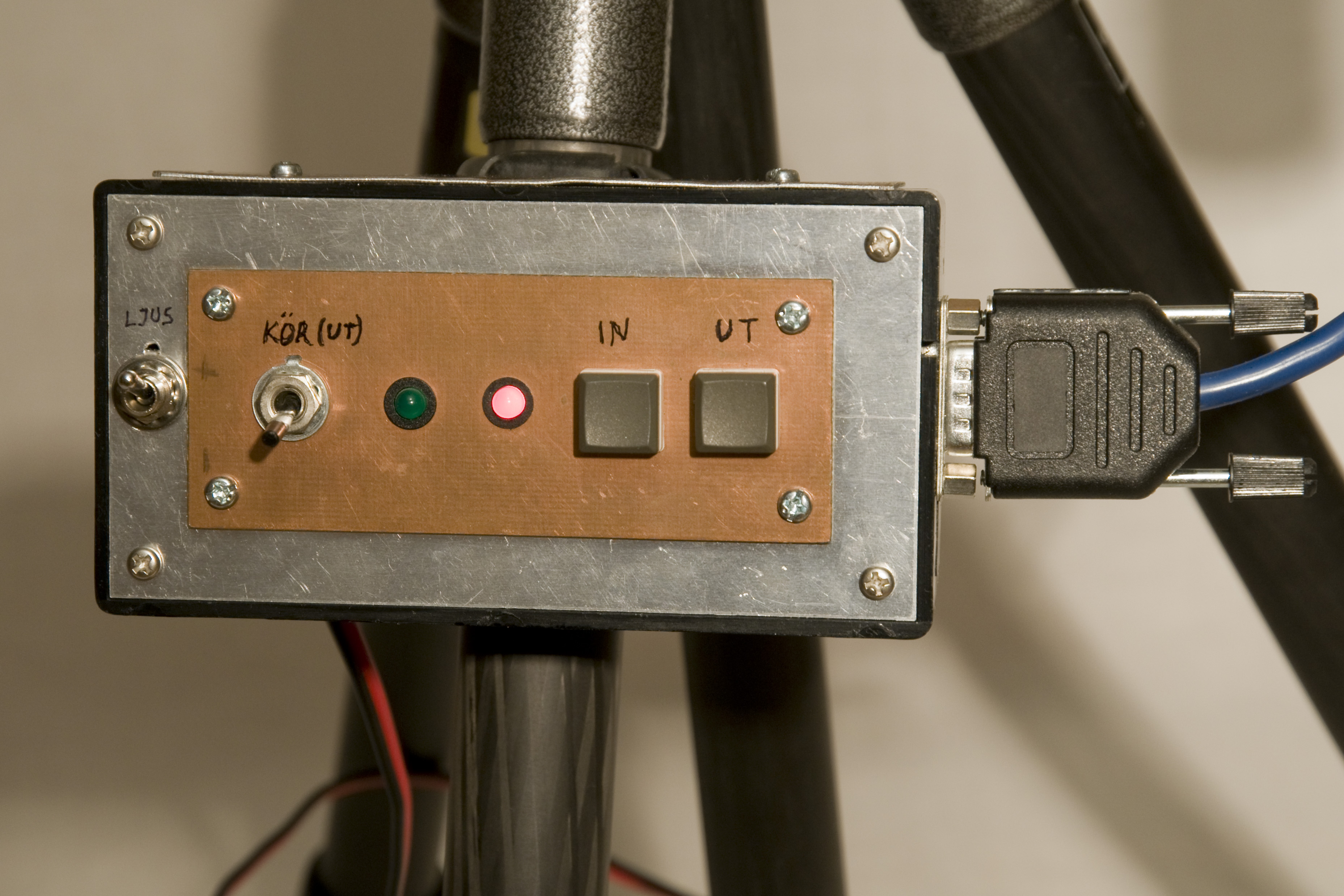

The electronics box with the control panel mounted on one of the tripod legs. The controls from the left to the right are: LED lights on/off; run motor to allow photography; LED that flashes when the motor is running; power LED; run motor fast to reset to original position; run motor fast in other direction. Inside the box there is a crystal controlled microcontroller and drive electronics for the motor.


© Per Magnusson
